This document provides technical specifications and configuration details for the AUMA TPA00R1AA-0A1-000 device. It outlines various switch functions including torque switches, limit switches, and thermoswitches with specific operational states such as closing or opening in clockwise or counter-clockwise directions.

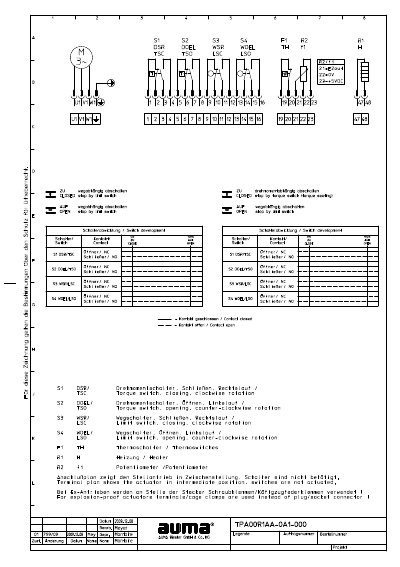

The text includes a terminal plan description indicating that the shown configuration represents an intermediate position where switches are not yet activated. It also notes that for explosion-proof actuators, terminals/cable clamps replace plug/socket connectors. This manual is written in German.
The S1 switch is a torque switch for closing during clockwise rotation, and the S2 switch is a torque switch for opening during counter-clockwise rotation.
The S3 switch is a limit switch for closing during clockwise rotation, and the S4 switch is a limit switch for opening during counter-clockwise rotation.
The component labeled R1 is a potentiometer.
