AUMA SAR 07.6 modulating actuator from Germany, equipped with 3 ph AC motor, power is 0.06 kW, output speed is 8 rpm, torque is up to 30-60 Nm

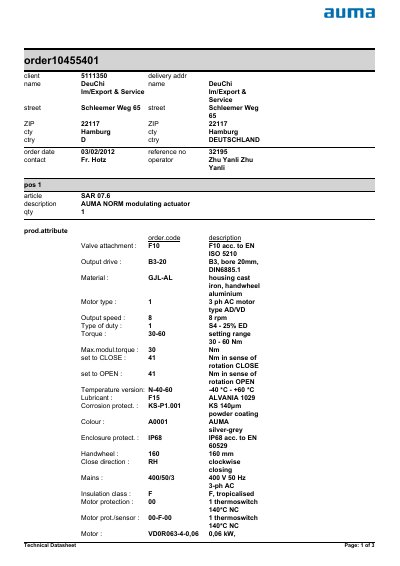

This document provides technical specifications for the AUMA SAR 07.6 modulating actuator. It covers the main unit's motor type, output speed, torque range, and environmental protection ratings. The datasheet also details the specific motor and gearbox components included in the assembly.
| Output speed | 8 rpm |
|---|---|
| Torque setting range | 30-60 Nm |
| Max. modulating torque | 30 Nm |
| Max. output torque | 700 Nm |
| Max. input torque | 41 Nm |
| Reduction ratio | 51:1 |
| Swing angle | 92 degrees |
| Enclosure protection | IP68 |
| Mains voltage | 400 V 50 Hz 3-ph AC |
| Motor power | 0.06 kW |
The standard temperature version is N-40-60, operating from -40 *C to +60 *C.
The maximum output torque is 700 Nm when using a bronze worm wheel.
The gearbox has a fixed reduction ratio of 51:1.
