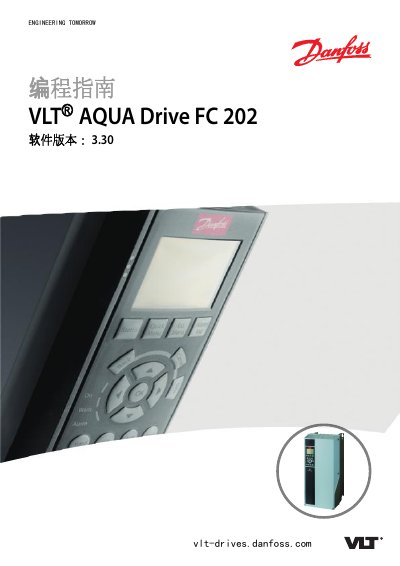

This guide provides programming information, parameter descriptions and troubleshooting for the VLT® AQUA Drive FC 202 variable‑frequency drive.
The Programming Guide explains how to configure and program the VLT® AQUA Drive FC 202 VFD. It covers software version details, safety requirements, electrical wiring, and the use of the local control panel (LCP) for parameter entry.
The document includes a complete list of parameters, instructions for copying settings between drives, password configuration, and a fault‑diagnosis section to help technicians identify and resolve common issues. This manual is written in Chinese.
| Input voltage range | 200–240 V |
|---|---|
| Power rating (low range) | 0.25–3.7 kW (0.34–5 hp) |
| Power rating (high range) | 5.5–45 kW (7.5–60 hp) |
Use the LCP copy functions: you can copy all parameters to the LCP, copy from the LCP to a drive, or copy only motor‑independent parameters to set multiple drives with the same configuration.
The password parameter (0‑60) defines a numeric password required to access the main menu via the Main Menu key; setting it to 0 disables the password.
