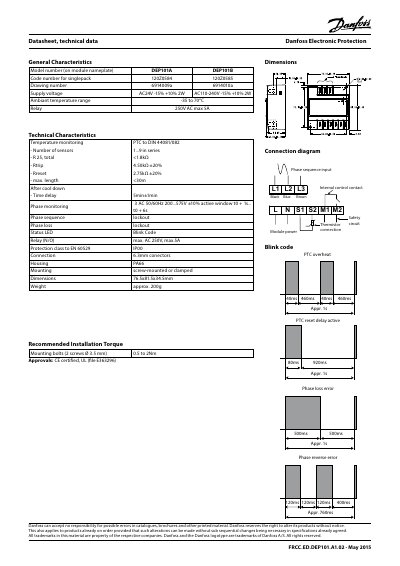

Technical data sheet for Danfoss DEP101A and DEP101B electronic protection modules, including specifications, dimensions and installation notes.
The Danfoss DEP101A and DEP101B are electronic protection modules designed for industrial applications. The datasheet provides general characteristics, recommended installation torque, and wiring diagrams.
Key features include a wide supply voltage range, temperature and phase monitoring, and compliance with CE and UL approvals. Physical dimensions, weight, and mounting details are also listed for easy integration.
| Supply voltage (low voltage) | AC 24 V ±15 % +10 % 2 W |
|---|---|
| Ambient temperature range | -35 °C to 70 °C |
| Relay rating | 250 V AC max, 5 A |
| Temperature monitoring sensor count | 1 to 9 sensors in series |
| Phase monitoring voltage range | 200 V to 575 V ±10 % (3 AC, 50/60 Hz) |
| Dimensions (L×W×H) | 76.5 mm × 81.5 mm × 34.5 mm |
| Weight | ≈ 200 g |
| Approvals | CE certified, UL |
The device can operate from –35 °C to 70 °C.
The built‑in relay is rated for up to 250 V AC at 5 A.
The module measures 76.5 mm × 81.5 mm × 34.5 mm.
