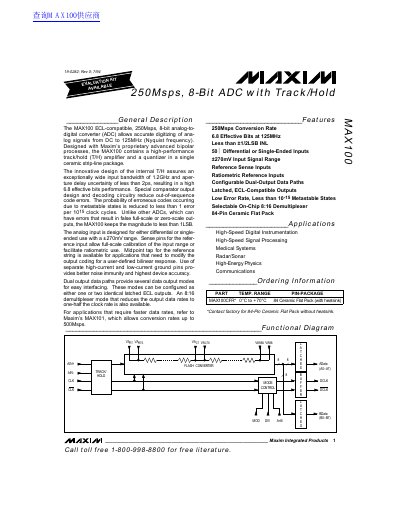

Maxim MAX100 250Msps 8-Bit ADC Datasheet

max100 8-bit high-precision adc with a maximum sampling rate of 250msps and a voltage input range of ±270mv

Brand: Maxim
Category: Data Converters
Document type: Datasheet
Language: English
Pages: 16
File format: PDF
File size: 120 KB
Published: 10 July, 2012
Updated: 30 September, 2023
Model: MAX100
MD5 checksum: 21992FA60F450EFB1AB101117E8219F7
PDF: Maxim MAX100 250Msps 8-Bit ADC Datasheet PDF

About this manual

The MAX100 is an 8-bit analog-to-digital converter (ADC) designed for accurate digitizing of analog signals from DC to 125MHz. It features a high-performance track/hold amplifier and a quantizer in a single ceramic strip-line package, utilizing Maxim's proprietary advanced bipolar processes. The device offers an exceptionally wide input bandwidth of 1.2GHz and an aperture delay uncertainty of less than 2ps.

What's inside

General Description
Features
Applications
Ordering Information
Absolute Maximum Ratings
Electrical Characteristics
Timing Characteristics
Typical Operating Characteristics
Pin Description

Specifications

Conversion Rate	250Msps
Resolution	8 Bits
Effective Bits (125MHz)	6.8
Input Bandwidth	1.2 GHz
Package	84-Pin Ceramic Flat Pack
Operating Temperature	0°C to +70°C

Frequently asked questions

What is the maximum conversion rate of the MAX100?

The maximum conversion rate is 250Msps.

Does the MAX100 support differential or single-ended inputs?

Yes, the analog input is designed for either differential or single-ended use.

What is the input signal range?

The input signal range is +270mV.
