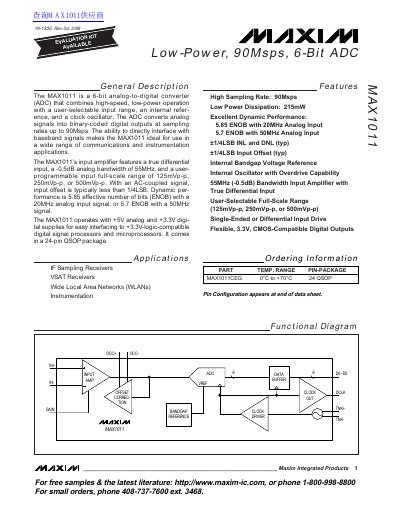

The MAX1011 is a 6-bit analog-to-digital converter (ADC) that combines high-speed, low-power operation with a user-selectable input range, an internal reference, and a clock oscillator. The ADC converts analog signals into binary-coded digital outputs at sampling rates up to 90Msps. The ability to directly interface with baseband signals makes the MAX1011 ideal for use in a wide range of communications and instrumentation applications. The MAX1011’s input amplifier features a true differential input, a -0.5dB analog bandwidth of 55MHz, and a user-programmable input full-scale range of 125mVp-p, 250mVp-p, or 500mVp-p. With an AC-coupled signal, input offset is typically less than 1/4LSB. Dynamic performance is 5.85 effective number of bits (ENOB) with a 20MHz analog input signal, or 5.7 ENOB with a 50MHz signal. The MAX1011 operates with +5V analog and +3.3V digital supplies for easy interfacing to +3.3V-logic-compatible digital signal processors and microprocessors. It comes in a 24-pin QSOP package.
The MAX1011 is a 6-bit ADC that combines high-speed operation with low power dissipation. It features a user-selectable input range, an internal voltage reference, and an integrated clock oscillator. The device converts analog signals into binary-coded digital outputs at sampling rates up to 90Msps.
| Resolution | 6 Bits |
|---|---|
| Maximum Sample Rate | 90 Msps |
| Analog Input -0.5dB Bandwidth | 55 MHz |
| Power Dissipation | 215 mW |
The MAX1011 operates at sampling rates up to 90Msps.
The device supports user-selectable input full-scale ranges of 125mVp-p, 250mVp-p, or 500mVp-p.
The MAX1011 has a power dissipation of 215mW.
