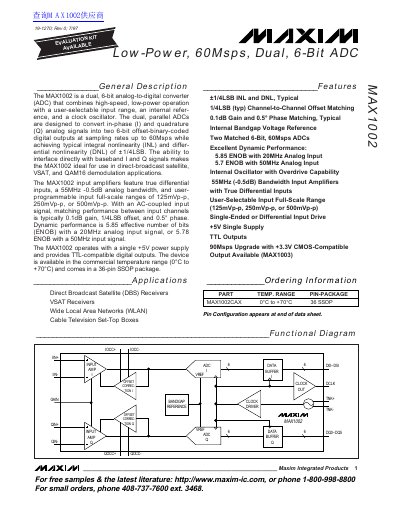

The MAX1002 is a dual, 6-bit analog-to-digital converter (ADC) that combines high-speed, low-power operation with a user-selectable input range, an internal reference, and a clock oscillator. The dual, parallel ADCs are designed to convert in-phase (I) and quadrature (Q) analog signals into two 6-bit offset-binary-coded digital outputs at sampling rates up to 60Msps while achieving typical integral nonlinearity (INL) and differential nonlinearity (DNL) of ±1/4LSB. The ability to interface directly with baseband I and Q signals makes the MAX1002 ideal for use in direct-broadcast satellite, VSAT, and QAM16 demodulation applications. The MAX1002 input amplifiers feature true differential inputs, a 55MHz -0.5dB analog bandwidth, and user-programmable input full-scale ranges of 125mVp-p, 250mVp-p, or 500mVp-p. With an AC-coupled input signal, matching performance between input channels is typically 0.1dB gain, 1/4LSB offset, and 0.5° phase. Dynamic performance is 5.85 effective number of bits (ENOB) with a 20MHz analog input signal, or 5.78 ENOB with a 50MHz input signal. The MAX1002 operates with a single +5V power supply and provides TTL-compatible digital outputs. The device is available in the commercial temperature range (0°C to +70°C) and comes in a 36-pin SSOP package.
The MAX1002 is a dual, 6-bit analog-to-digital converter (ADC) designed for high-speed, low-power operation. It combines an internal reference and clock oscillator to convert in-phase (I) and quadrature (Q) analog signals into two 6-bit offset-binary-coded digital outputs at sampling rates up to 60Msps. The device is ideal for applications such as direct-broadcast satellite, VSAT, and QAM16 demodulation.
| Resolution | 6-bit |
|---|---|
| Sampling Rate | up to 60Msps |
| Differential Nonlinearity (DNL) | ±1/4LSB |
| Effective Number of Bits (ENOB) | 5.85 bits @ 20MHz |
| Analog Bandwidth | 55MHz |
| Power Supply | +5V |
| Operating Temperature | 0°C to +70°C |
| Package | 36-pin SSOP |
The input full-scale ranges are 125mVp-p, 250mVp-p, or 500mVp-p.
No, the device includes an internal clock oscillator.
The dynamic performance is 5.78 ENOB with a 50MHz input signal.
