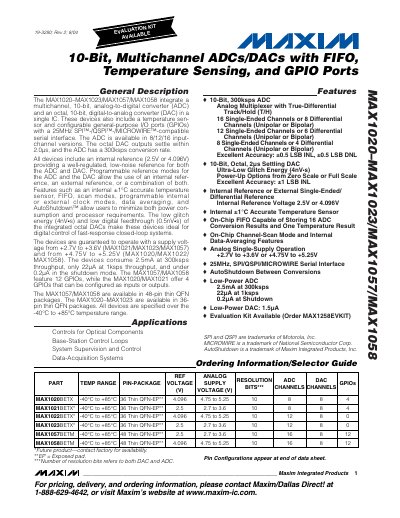

The MAX1020-MAX1023/MAX1057/MAX1058 integrate a multichannel, 10-bit analog-to-digital converter (ADC) and an octal, 10-bit digital-to-analog converter (DAC) in a single IC. These devices also include a temperature sensor and configurable general-purpose I/O ports with a 25MHz SPI-/QSPI-/MICROWIRE-compatible serial interface.
| Resolution | 10 Bits |
|---|---|
| Conversion Rate | 300ksps |
| Supply Voltage | +2.7V to +3.6V or +4.75V to +5.25V |
| Operating Temperature Range | -40°C to +85°C |
| Internal Reference Voltage | 2.5V or 4.096V |
The ADC has a 300ksps conversion rate.
The devices support 25MHz SPI-, QSPI-, and MICROWIRE-compatible serial interfaces.
