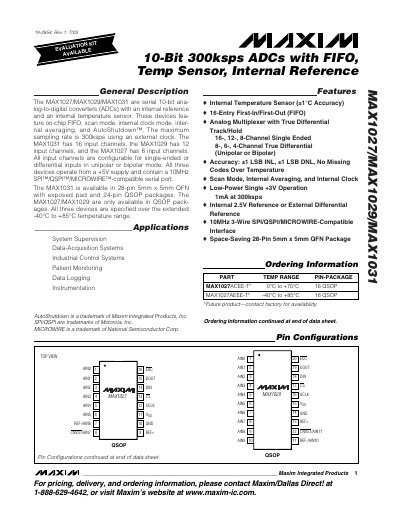

The MAX1027/MAX1029/MAX1031 are serial 10-bit analog-to-digital converters (ADCs) with an internal reference and an internal temperature sensor. These devices feature on-chip FIFO, scan mode, internal clock mode, internal averaging, and AutoShutdown™. The maximum sampling rate is 300ksps using an external clock. The MAX1031 has 16 input channels, the MAX1029 has 12 input channels, and the MAX1027 has 8 input channels. All input channels are configurable for single-ended or differential inputs in unipolar or bipolar mode. All three devices operate from a +5V supply and contain a 10MHz SPI™/QSPI™/MICROWIRE™-compatible serial port. The MAX1031 is available in 28-pin 5mm x 5mm QFN with exposed pad and 24-pin QSOP packages. The MAX1027/MAX1029 are only available in QSOP packages. All three devices are specified over the extended -40°C to +85°C temperature range.
The MAX1027, MAX1029, and MAX1031 are serial 10-bit analog-to-digital converters (ADCs) with an internal reference and an internal temperature sensor. These devices feature on-chip FIFO, scan mode, internal clock mode, internal averaging, and AutoShutdown. The maximum sampling rate is 300ksps using an external clock. The MAX1031 has 16 input channels, the MAX1029 has 12 input channels, and the MAX1027 has 8 input channels. All input channels are configurable for single-ended or differential inputs in unipolar or bipolar mode. All three devices operate from a +5V supply and contain a 10MHz SPI/QSPI/MICROWIRE-compatible serial port.
| Resolution | 10 Bits |
|---|---|
| Maximum Sampling Rate | 300ksps |
| Integral Nonlinearity | +1.0 LSB |
| Differential Nonlinearity | No missing codes over temperature |
| Supply Voltage | +2.7V to +3.6V |
| Operating Temperature Range | -40°C to +85°C |
| Internal Reference Voltage | 2.5V |
| Signal-to-Noise Plus Distortion | 70 dB |
The maximum sampling rate is 300ksps using an external clock.
Yes, they feature an internal temperature sensor with +1°C accuracy.
The MAX1031 has 16 channels, the MAX1029 has 12, and the MAX1027 has 8.
