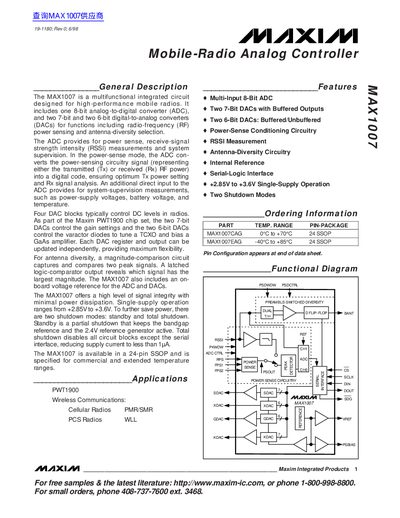

The MAX1007 is a multifunctional integrated circuit designed for high-performance mobile radios. It includes one 8-bit analog-to-digital converter (ADC), and two 7-bit and two 6-bit digital-to-analog converters (DACs) for functions including radio-frequency (RF) power sensing and antenna-diversity selection.
The MAX1007 is a multifunctional integrated circuit designed for high-performance mobile radios. It includes one 8-bit analog-to-digital converter (ADC) and two 7-bit and two 6-bit digital-to-analog converters (DACs). The device supports functions such as radio-frequency power sensing, antenna-diversity selection, receive-signal-strength intensity measurements, and system supervision.
The chip operates on a single supply ranging from +2.85V to +3.6V and is available in a 24-pin SSOP package. It offers two shutdown modes: standby, which keeps the bandgap reference active, and total shutdown, which disables all circuit blocks except the serial interface.
| ADC Resolution | 8 Bits |
|---|---|
| DAC Resolution (7-bit) | 7 Bits |
| DAC Resolution (6-bit) | 6 Bits |
| Supply Voltage Range | +2.85V to +3.6V |
| Package Type | 24 SSOP |
The device operates with a single supply ranging from +2.85V to +3.6V.
