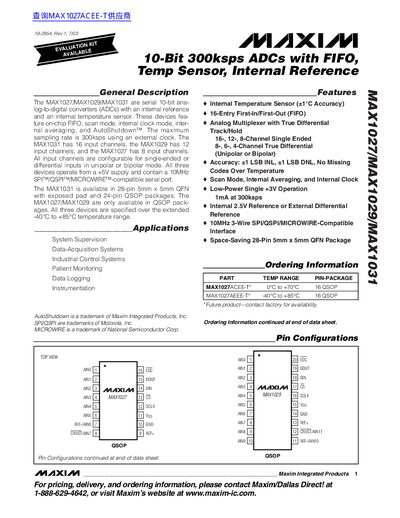

The MAX1027/MAX1029/MAX1031 are 10-bit serial analog-to-digital converters (ADCs) with an internal reference and an internal temperature sensor. These devices feature on-chip FIFO, scan mode, internal clock mode, internal averaging, and AutoShutdown™. The maximum sampling rate is 300ksps using an external clock. The MAX1031 has 16 input channels, the MAX1029 has 12 input channels, and the MAX1027 has 8 input channels. All input channels are configurable for single-ended or differential inputs in unipolar or bipolar mode. All three devices operate from a +5V supply and contain a 10MHz SPI™/QSPI™/MICROWIRE™-compatible serial port. The MAX1031 is available in 28-pin 5mm x 5mm QFN with exposed pad and 24-pin QSOP packages. The MAX1027/MAX1029 are only available in QSOP packages. All three devices are specified over the extended -40°C to +85°C temperature range.
The MAX1027/MAX1029/MAX1031 are serial 10-bit analog-to-digital converters (ADCs) with an internal reference and an internal temperature sensor. These devices feature on-chip FIFO, scan mode, internal clock mode, internal averaging, and AutoShutdown. The maximum sampling rate is 300ksps using an external clock.
| Resolution | 10 Bits |
|---|---|
| Maximum Sampling Rate | 300ksps |
| Supply Voltage | +2.7V to +3.6V |
| Integral Nonlinearity (INL) | +1.0 LSB |
| Differential Nonlinearity (DNL) | No missing codes over temperature |
| Signal-to-Noise Plus Distortion (SINAD) | 70 dB |
| Full-Power Bandwidth | 1 MHz |
The maximum sampling rate is 300ksps using an external clock.
Yes, they feature an internal temperature sensor with +1°C accuracy for Grade A.
All three devices operate from a +5V supply, but electrical characteristics specify VoD = +2.7V to +3.6V.
