The CMR1S-01 is a 1.0 amp super fast recovery rectifier from Central Semiconductor. It features a fast switching speed, low voltage drop, and high reliability.

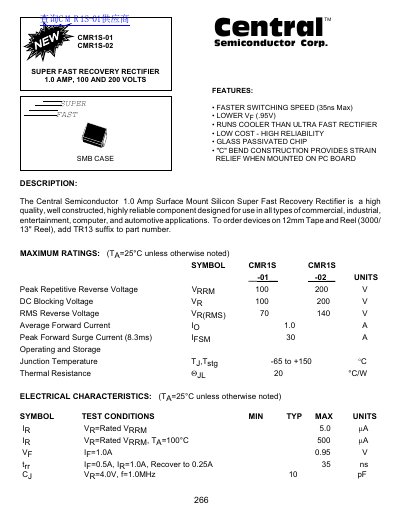

This document is a datasheet for the Central Semiconductor CMR1S-01 (100V) and CMR1S-02 (200V) Super Fast Recovery Rectifiers. These are 1.0 Amp surface mount silicon components designed for commercial, industrial, entertainment, computer, and automotive applications.
| Peak Repetitive Reverse Voltage (VRRM) | 100 V / 200 V |
|---|---|
| Average Forward Current (Io) | 1.0 A |
| Peak Forward Surge Current (IFSM) | 30 A |
| Maximum Switching Speed | 35 ns |
| Typical Forward Voltage Drop (VF) | .95 V |
The maximum switching speed is 35 nanoseconds.
Yes, add the TR13 suffix to the part number for 12mm Tape and Reel.
