This datasheet provides information on the Central Semiconductor 1.0 Amp Surface Mount Fast Recovery Silicon Rectifier, including maximum ratings, electrical characteristics, and physical dimensions.

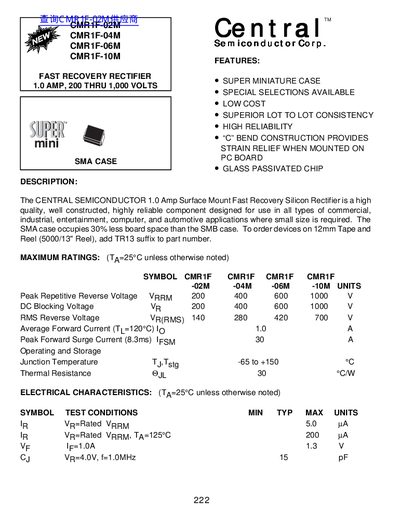

This document provides technical specifications for the Central Semiconductor CMR1F series of 1.0 Amp Surface Mount Fast Recovery Silicon Rectifiers. These components are designed for use in commercial, industrial, entertainment, computer, and automotive applications where a small size is required. The device utilizes an SMA case which occupies 30% less board space than the SMB case.
| Peak Forward Surge Current | 30 A |
|---|---|
| Operating and Storage Temperature | -65 to +150 °C |
| Thermal Resistance | 30 °C/W |
The SMA case occupies 30% less board space than the SMB case.
The peak forward surge current is 30 A for an 8.3ms duration.
The series includes ratings of 200V, 400V, 600V, and 1000V.
