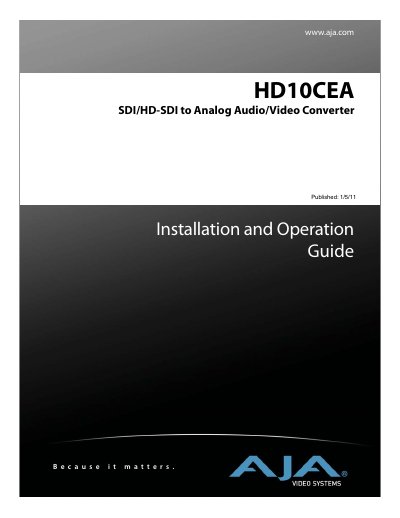

AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter Installation and Operation Guide

This document is the user manual for AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter

Brand: AJA
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 367 KB
Published: 09 July, 2012
Updated: 30 September, 2023
Models: D10CEA, D10CE
MD5 checksum: 8B7F2FACB8FFAE876B67EF389D51796A
PDF: AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter Installation and Operation Guide PDF

About this manual

The AJA HD10CEA is a converter that transforms SDI/HD-SDI video with embedded audio into analog video and 4-channel balanced analog audio. It supports various input formats including 525i, 625i, 1080p, 1080i, and 720p, and allows users to configure SD video outputs as YPbPr, RGB, composite, or YC, while HD outputs are limited to YPbPr or RGB. All configuration is performed using external dipswitches located on the bottom of the unit.

What's inside

Introduction
Features
Input Formats
I/O Connections
User Controls
Format Selection
Installation
Specifications

Specifications

Input	SDI/HD-SDI w/Embedded Audio, 1x BNC
Power	+5-18VDC, Regulated, 4 Watts
Digital Size	5.8" x 3.1" x 1" (147 x 79 x 25mm)
Audio Output	4 Channel Balanced

Frequently asked questions

What power supply is required for the HD10CEA?

The unit requires +5-18VDC power, and the AJA power supply model DWP or DWP-U is recommended.

What happens if the input is HD-SDI?

When supplied with HD-SDI, only component SMPTE or RGB video output is possible from the HD10CEA.

Download PDF (367 KB)
