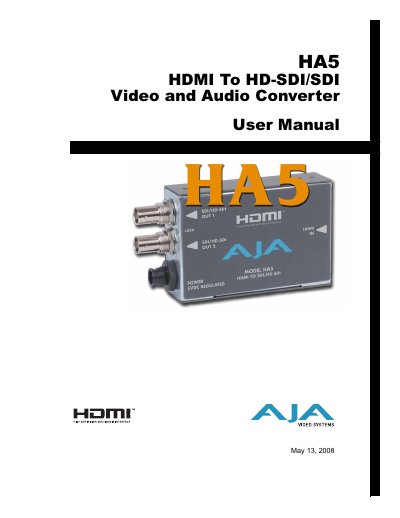

HA5 HDMI to HD-SDI/SDI Video and Audio Converter User Manual
The AJA HA5 is a converter designed to transform HDMI signals into SDI or HD-SDI formats. It supports up to eight channels of HDMI audio, which are embedded into the SDI output, allowing for a single-cable audio/video connection. The device is particularly useful for connecting HDMI cameras and other sources to SDI/HD-SDI capture cards and equipment.
| Input Formats | 525i, 625i, 1080p, 1080i, 720p |
|---|---|
| Outputs | SMPTE-259/292/296, SDI/HD-SDI, 2 x BNC |
| Size | 4.6" x 2.4" x 1" |
| Power | +5 VDC regulated, 4 watts |
| Audio Channels | Up to eight channels |
No, the HA5 will not pass HDMI video with HDCP copy protection.
The HA5 requires a +5 VDC regulated power supply, with the AJA DWP or DWP-U models recommended.
The HA5 supports up to eight channels of HDMI audio, which are embedded into the SDI output.
