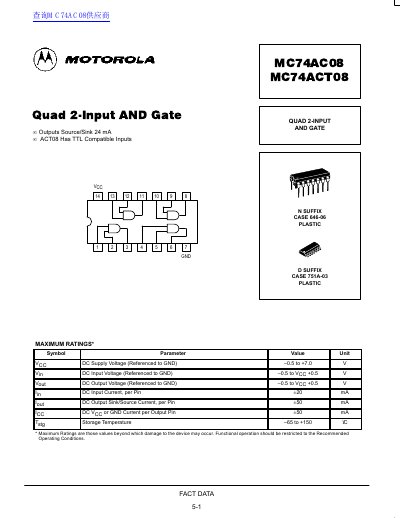

Motorola MC74AC08/MC74ACT08 Quad 2-Input AND Gate Datasheet

MC74AC08 and MC74ACT08 are quad 2-input AND logic gates with output drive capability of 24 mA. MC74ACT08 has TTL compatible inputs.

Brand: Motorola
Category: Chips
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 131 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 16DFADB9A82EF492B18C2859F853CC77
PDF: Motorola MC74AC08/MC74ACT08 Quad 2-Input AND Gate Datasheet PDF

About this manual

This document provides technical specifications for the Motorola MC74AC08 and MC74ACT08 devices, which are quad 2-input AND gates. The datasheet covers maximum ratings, recommended operating conditions, DC and AC characteristics, capacitance values, and outline dimensions for plastic DIP and SOIC packages.

What's inside

Maximum Ratings
Recommended Operating Conditions
DC Characteristics (74AC)
DC Characteristics (74ACT)
AC Characteristics
Capacitance
Outline Dimensions

Frequently asked questions

What is the maximum DC supply voltage for this device?

The maximum DC supply voltage referenced to ground is +7.0 V.

How much current can each output pin source or sink?

Each output pin can source or sink a maximum of 24 mA.

What is the operating ambient temperature range for this product?

The device operates within an ambient temperature range of -40 to +85 °C.
