The MC74AC/ACT05 is a device that is pin-compatible with the LS05. The device inputs are compatible with standard CMOS outputs and, with pull-up resistors, they are compatible with TTL outputs. The outputs can source/sink 24 mA, and the ′ACT05 has TTL-compatible inputs.

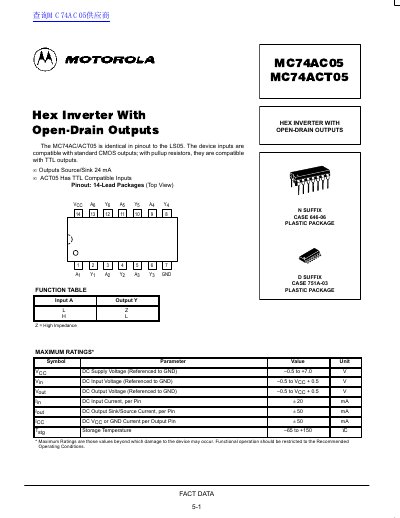

This document provides technical specifications for the Motorola MC74AC05 and MC74ACT05 devices, which are hex inverters featuring open-drain outputs. The chips are pinout-compatible with the LS05 series and offer TTL-compatible inputs when used with pull-up resistors.
| Outputs Source/Sink Current | 24 mA |
|---|---|
| DC Supply Voltage Range | -0.5 to +7.0 V |
| Package Type N Suffix | Plastic DIP Package |
| Package Type D Suffix | Plastic SOIC Package |
Yes, with pullup resistors.
The device outputs can source or sink 24 mA.
The device can be stored between -65 and +150 °C.
The maximum DC input current is +20 mA per pin.
