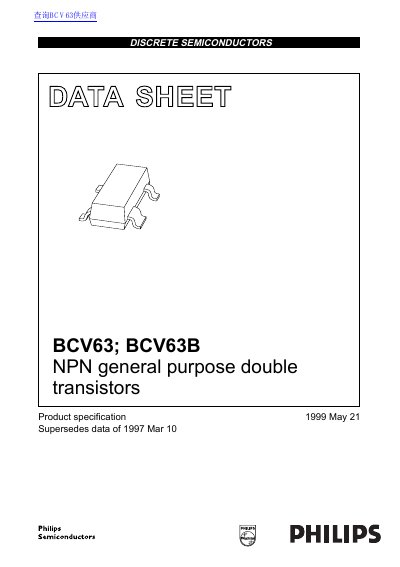

BCV63; BCV63B are NPN double transistors from Philips Semiconductors with low current (max. 100 mA) and low voltage (max. 30 and 6 V). It is suitable for general purpose switching and amplification as well as Schmitt trigger applications.
The document describes the BCV63 and BCV63B as NPN general purpose double transistors housed in a SOT143B plastic package. These devices are designed for low current (max. 100 mA) and low voltage (max. 30 V and 6 V) applications, suitable for general purpose switching, amplification, and Schmitt-trigger circuits.
| Collector current (DC) | - 100 mA |
|---|---|
| Peak collector current | - 200 mA |
| Collector-base voltage (TR1) | - 30 V |
| Total power dissipation | - 250 mW |
| Storage temperature | -65 +150 °C |
| Thermal resistance (junction to ambient) | 500 K/W |
They are used for general purpose switching and amplification, as well as in Schmitt-trigger applications.
The maximum DC collector current is 100 mA, with a peak collector current of 200 mA.
The maximum collector-base voltage for TR1 is 30 V.
