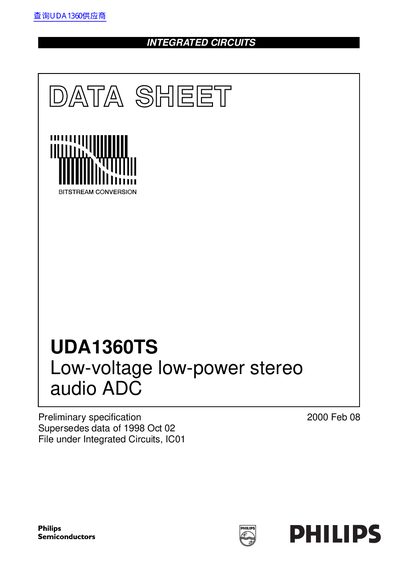

UDA1360TS is a single chip stereo Analog-to-Digital Converter (ADC) employing bitstream conversion techniques from Philips Semiconductors. The low power consumption and low voltage requirements make the device eminently suitable for use in low-voltage low-power portable digital audio equipment which incorporates recording functions.
The Philips UDA1360TS is a single-chip stereo Analog-to-Digital Converter (ADC) employing bitstream conversion techniques. Designed for low-voltage and low-power portable digital audio equipment with recording functions, it supports 2S-bus and MSB-justified data formats with word lengths up to 20 bits. The device features an integrated high-pass filter to cancel DC offset and offers selectable input gain stages.
| Power supply voltage (analog/digital) | 2.4 to 3.6 V |
|---|---|
| Operating ambient temperature | -40 to +85 °C |
| Signal-to-noise ratio (A-weighted) | 97 dB |
| Channel separation | 100 dB |
| Package type | SSOP16 |
| Maximum input voltage (RMS) | 2 V |
The device supports a sampling frequency range of 5 to 55 kHz.
It uses a small package size, specifically SSOP16.
