UDA1361TS is a 96 kHz sampling 24-bit stereo audio ADC with features such as low power consumption, support for multiple sampling frequencies, small package size, and integrated high-pass filter.

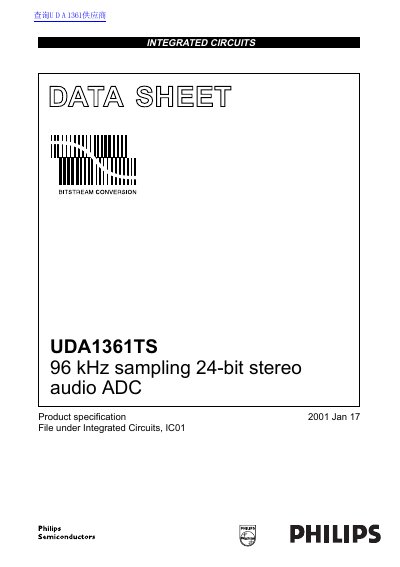

The Philips UDA1361TS is a single-chip stereo Analog-to-Digital Converter (ADC) that employs bitstream conversion techniques. It is designed for low-voltage, low-power portable digital audio equipment and supports sampling frequencies up to 110 kHz with a 2.4 to 3.6 V power supply. The device features a small SSOP16 package and includes an integrated high-pass filter to cancel DC offset.
| Sampling Frequency | 5 to 110 kHz |
|---|---|
| Power Supply Voltage | 2.4 to 3.6 V |
| Package Type | SSOP16 |
| Analog Supply Current (Typ) | 10.5 mA |
| Signal-to-Noise Ratio (Typ) | 100 dB |
| Channel Separation (Typ) | 100 dB |
| Total Harmonic Distortion + Noise (Typ) | -88 dB |
The device supports sampling frequencies up to 110 kHz.
The device operates with a power supply voltage between 2.4 V and 3.6 V.
Yes, it includes an integrated high-pass filter to cancel DC offset.
The device is available in a small SSOP16 package.
