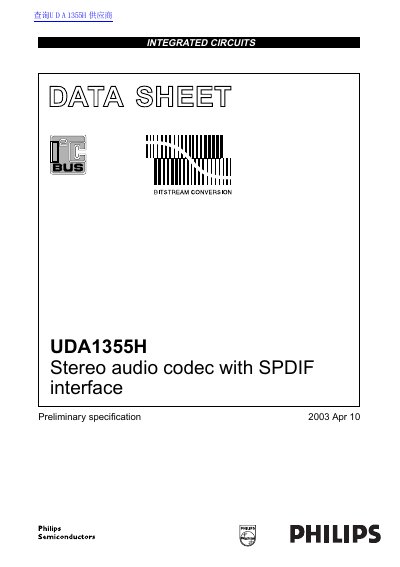

The UDA1355H is a stereo audio codec with an SPDIF interface, featuring various input and output interfaces and digital sound processing capabilities.
The Philips UDA1355H is a single-chip stereo audio codec that integrates an IEC 60958 decoder and encoder with digital-to-analog converters (DAC) and analog-to-digital converters (ADC). It employs bitstream conversion techniques and supports selectable SPDIF inputs accepting Level I, II, and III timing, as well as a single SPDIF output capable of generating Level II signals with CMOS levels.
The device features a 24-bit data path in both its interpolator and decimator filters. It supports sampling frequencies from 16 to 100 kHz and includes programmable gain amplifiers (PGA) and digital volume controls. Control is achieved via static pins or microcontroller interfaces using L3-bus or I2C-bus protocols.
| Power supply voltage | 2.7 to 3.6 V |
|---|---|
| Data path width | 24-bit |
| Sampling frequency range | 16 to 100 kHz |
| Crystal oscillator frequency | 12.288 MHz |
| Ambient temperature range | -40 to +85 °C |
| Channel separation | 100 dB |
The device operates with a power supply voltage ranging from 2.7 V to 3.6 V.
Yes, it includes an on-chip amplifier for converting IEC 60958 input to CMOS levels and supports Level I, II, and III timing.
The device requires a 12.288 MHz crystal to operate its clock systems.
