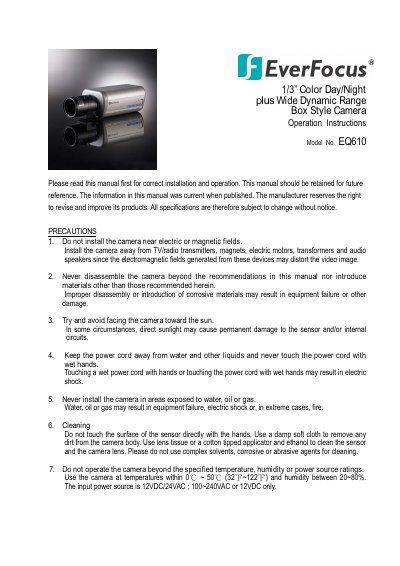

This manual provides instructions for installing, using, and maintaining the EQ610 box camera. Please read it carefully.
The EverFocus EQ610 is a 1/3" Color Day/Night Box Style Camera equipped with a 1/3" Sony Super HAD II CCD sensor. It offers features such as Digital Wide Dynamic Range (WDR), 3D-Noise Reduction, and up to 256x sensitivity increase for low-light conditions down to .0002 lux. The camera supports both full motion color and true day/night modes without ghosting.
| Sensor Type | 1/3" SONY Super HAD II CCD |
|---|---|
| Horizontal Resolution | 860 TVL |
| Sensitivity (AGC ON) | 0.05Lux/F=1.2 |
| Max Sensitivity (Sens-up 256x) | 0.0002Lux/F=1.2 |
| Electronic Shutter Range | 1/60 ~ 1/100,000 sec |
| Power Consumption (24VAC) | 3W max. |
| Operating Temperature | 0°C ~ 50°C |
The camera achieves a starlight super high sensitivity of .0002 Lux/F=1.2 through a sensitivity increase setting of up to 256x.
Yes, it offers an easy-to-use OSD setup menu controllable locally or via RS-485 remote control from a keyboard and/or DVR.
The camera accepts 12VDC, 24VAC, or universal AC input ranging from 100~240VAC.
