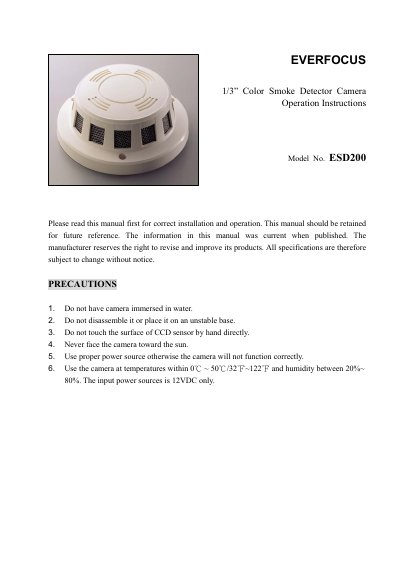

This document provides the operation instructions for the EVERFOCUS ESD200 1/3” Color Smoke Detector Camera. It includes precautions and features of the product, such as high image quality, high sensitivity, and 360-degree surveillance.
The EverFocus ESD200 is a 1/3" color smoke detector camera designed for discreet surveillance. It utilizes a high-sensitivity 1/3" SONY Super HAD interline transfer color CCD sensor to deliver clear images. The unit supports simultaneous installation of up to four cameras for complete 360-degree coverage and features built-in fixed lenses with options for NTSC or PAL video formats.
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Video Format | NTSC or PAL |
| Horizontal Resolution | 380 TV Lines |
| Sensitivity | 0.3 Lux/F=1.2 |
| Power Source | 12VDC only |
| Operating Temperature | 0°C ~ 50°C / 32°F~122°F |
| Dimensions | 150 mm x 50 mm; 6" x 2" |
The horizontal view angle is 78 degrees.
Up to four cameras can be installed simultaneously for complete surveillance.
