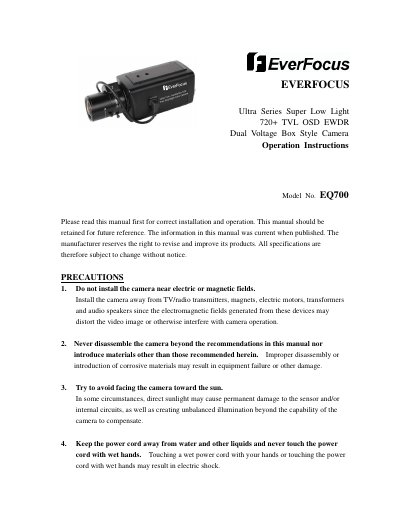

This document is an operation instruction for EVERFOCUS Ultra Series Super Low Light 720+ TVL OSD EWDR Dual Voltage Box Style Camera, including correct installation and operation. The document provides some precautions, such as avoiding installing the camera near electric or magnetic fields, avoiding facing the camera toward the sun, etc. Furthermore, the document emphasizes not to disassemble the camera beyond recommendations or introduce materials other than those recommended. The model of the camera is EQ700.
This manual provides operation instructions for the EverFocus EQ700 Ultra Series Super Low Light Dual Voltage Box Style Camera. It details precautions for safe use, including environmental limits and cleaning procedures, as well as mounting guidelines to ensure stability and proper support.
The document covers product features such as ultra-low light sensitivity (0.0001 lux), 720+ TVL resolution, and Digital Wide Dynamic Range capabilities. It includes step-by-step installation instructions for C-mount or DC iris lenses and provides a comprehensive guide to the On-Screen Display (OSD) menu functions, including image adjustments, motion detection, privacy masking, and language selection.
| Imaging Device | 1/8" Sony Exview HAD II 960H High Sensitivity Interline CCD |
|---|---|
| Horizontal Resolution | More than 720 TVL from production cameras |
| Sensitivity (Color) | ~.001 lux |
| Power Source | 12VDC/24VAC |
| Operating Temperature | -10°C ~ +50 °C (14°F ~122°F) |
| Dimensions | 2.28" x 2.28" x 4.765" / 58mm x 58mm x 121mm |
The camera should be used at temperatures within -10°C to +50 °C (14°F to 122°F).
No, this device is rated for indoor operation only.
The camera supports 12VDC and 24VAC input power sources.
Yes, it supports motion detection for 4 configurable zones with on-screen alarm indication.
