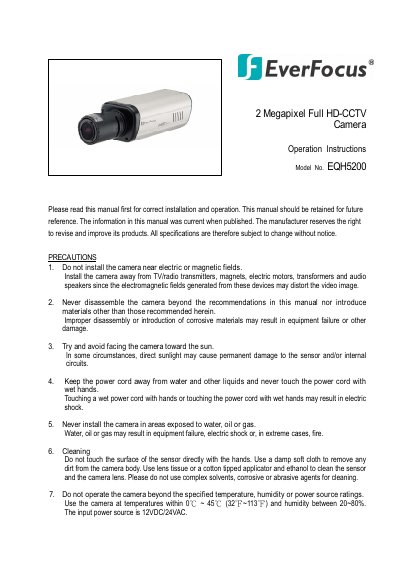

This document is the operation instructions for the EQH5200 2 Megapixel Full HD-CCTV camera. The instructions include installation and operation steps. The document provides some precautions, such as avoiding electromagnetic fields, sunlight, and liquids that may affect the camera.
The EverFocus EQH5200 is a 2 megapixel full HD-CCTV camera designed to deliver 1080i quality digital images over standard coaxial cable. It features a 1/2.5" progressive scan CMOS sensor and supports both 1080i and 720p resolutions. The camera offers dual video outputs (HD-SDI and SD TV) and dual power source options (12VDC/24VAC), making it suitable for upgrading analog systems without requiring an IP network.
| Sensor | 1/2.5" 2 megapixel CMOS sensor |
|---|---|
| Resolution | 1920x1080/2 Megapixel/1080i or 1280x720/1 Megapixel/720p |
| Power Source | 12VDC/24VAC |
| Operating Temperature | 0°C~45°C |
| Dimensions | 68mm(W) x 56mm(H) x 146mm(D) |
The camera supports multiple languages including English, German, Russian, French, Spanish, Traditional Chinese, Simplified Chinese and Japanese.
Yes, the camera supports C-mount lenses, but you must use the included 5mm spacer C/CS Lens adapter ring to attach a C-mount lens.
