This is an operation manual for the HD CCTV digital video camera, which describes the features and characteristics of the equipment.

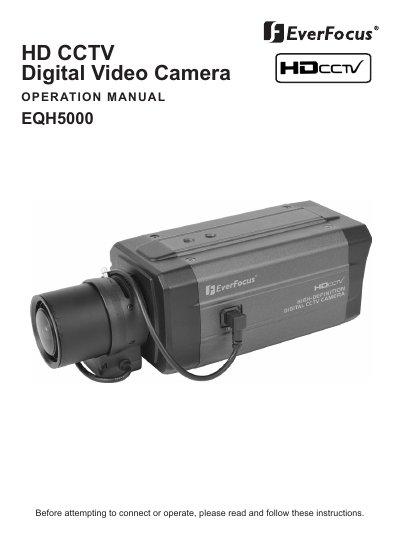

This document is the operation manual for the EverFocus EQH5000 HD CCTV Digital Video Camera. It provides instructions for installation, describes camera components, and details the features including the 1/3" Sony Progressive Color CMOS sensor and various video output options. The manual also includes a section on the OSD menu for setup and configuration.
| Sensor | 1/3" SONY Progressive Color CMOS Sensor |
|---|---|
| Resolution | 1280x720 30fps |
| Video Outputs | 720p 30, 720p 60, 720p 25, 720p 50 |
| Primary Output | HD-SDI (BNC) |
| Test/Setup Output | TV Out (BNC), NTSC /PAL selectable |
| SN Ratio | Max 50dB |
| Power Source | DC 12V |
| Lens Mount | CS Mount |
A regulated DC 12V 1A power supply is recommended for the best picture and most stable operation.
Yes, the camera accepts CS Mount lenses and includes an adapter for C-Mount lenses.
Yes, it provides true day/night capability with a motorized IR cut filter.
