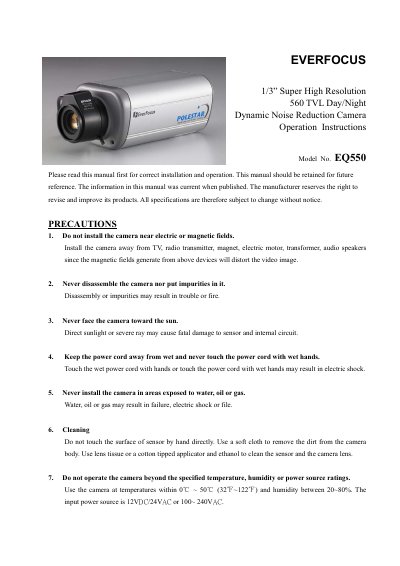

This document provides installation and operation instructions for the EVERFOCUS EQ550 1/3” Super High Resolution 560 TVL Day/Night Dynamic Noise Reduction Camera. It includes precautions for installing the camera, such as avoiding installation near electric or magnetic fields and not facing the camera towards direct sunlight. The document also provides guidelines for cleaning the camera.
This manual provides operation instructions for the EverFocus EQ550 Polestar camera, a 1/3" Super High Resolution device featuring 560 TVL horizontal resolution and built-in Dynamic Noise Reduction (DNR). The camera supports Day/Night and True Day/Night modes with an ICR module, achieving a starlight sensitivity of 0.002 Lux. It includes an advanced 16-bit DSP for clear image quality in low light conditions.
The document details the names and functions of parts on the front, top, bottom, and back panels, including tactile switches for on-screen menu navigation. It guides users through installation steps, connection procedures for video and power, and comprehensive camera setup operations such as white balance, backlight compensation, and motion detection configuration. Additionally, it explains how to control the camera via an RS485 port using a keyboard.
| Sensor Type | 1/3" SONY Super HAD color CCD |
|---|---|
| Resolution | 560 TVL |
| Sensitivity | 0.002 Lux |
| Operating Temperature | 0°C ~ 50°C |
| Humidity Range | 20~80% |
| Power Input | 12VDC/24VAC or 100~ 240VAC |
| DSP | 16-bit |
The camera achieves a starlight super-high sensitivity of 0.002 Lux/F=1.2.
Yes, with an RS485 port, you can control the EQ550 Polestar by a keyboard.
The built-in DNR (Dynamic Noise Reduction) function provides noise reduction and a 70% saving of disk storage.
Yes, it supports the Motion Detection function and provides an alarm output when motion is detected.
