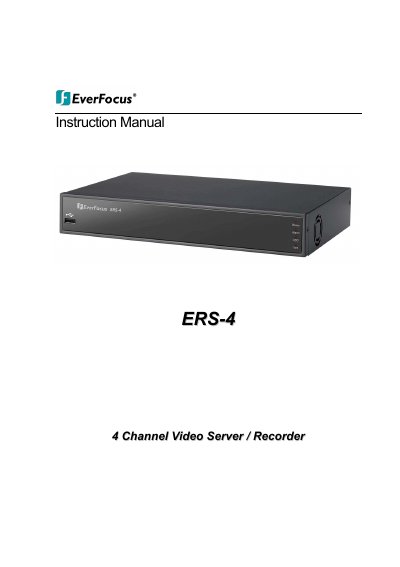

EverFocus ERS-4 4-Channel Video Server User Manual

This is a product manual for EERRSS-44 44 channel video server/recorder produced by Everfocus Electronics Corporation

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 162
File format: PDF
File size: 6.5 MB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: BA623E08C161BB9A55F14CE531F5B4EA
PDF: EverFocus ERS-4 4-Channel Video Server User Manual PDF

About this manual

The EverFocus ERS-4 is a 4-channel video server designed for CCTV applications, featuring local recording functions and efficient H.264 compression. It supports live and playback evaluation via network and local monitor operation using a mouse. The device includes optional internal SATA HDD support and multi-language interface capabilities.

What's inside

Product Overview
Installation
Configuration via Network
Network Operation
HDD Assembling
Mobile Phone Streaming
Networking
Local Setup

Specifications

Channels	4 channel
Compression Format	H.264
Video Input	4 x 1 Vpp FBAS, BNC, 75 Ohm termination
Monitor Output	1 x VGA (resolution 800x600@60 Hz)
Power Source	12VDC with external power supply 100~240 VAC / 50/60 Hz
Dimensions	320 x 208.9 x 54.3 mm
Operating Temperature	0°C~40°C / 32°F~104°F

Frequently asked questions

What compression format does the ERS-4 use?

The ERS-4 uses the H.264 compression format.

Can the ERS-4 be operated locally?

Yes, the setup menu and live view are accessible at a local monitor operated by a mouse.

Does the ERS-4 support PTZ protocols?

Yes, it supports EverFocus, Pelco-D, Pelco-P, Samsung El., and Transparent protocols.
