This operation manual introduces the features and characteristics of the EVERFOCUS ECZ330E/230E series CCD outdoor vari-frequency IR camera products, including resolution, light conditions, installation, power supply, etc.

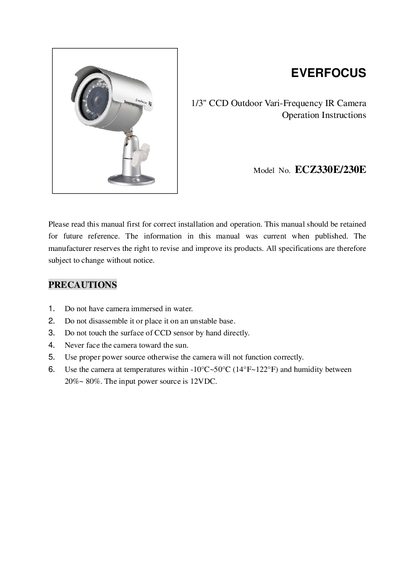

This manual provides operation instructions for the EverFocus ECZ230E/230E series of 1/3" CCD outdoor vari-frequency IR cameras. These devices feature a stylish, weatherproof (IP66) housing designed for 24-hour surveillance with low Lux performance and intelligent IR control to save electricity.
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Horizontal Resolution (ECZ230E) | 380 TV Lines |
| Horizontal Resolution (ECZ330E) | 520 TV Lines |
| Low Light Sensitivity (ECZ230E) | 0.3 Lux/F=1.2 (AGC ON) |
| Low Light Sensitivity (ECZ330E) | 0.4 Lux/F=1.2 (AGC ON) |
| IR Distance | 10~15 meters / 33~49 feet |
| IR Wavelength | 850nm |
| Power Source | 12VDC |
| Weatherproof Rating | IP66 |
The camera operates at temperatures between -10°C and 50°C (14°F~122°F).
The maximum power consumption is 3W when powered by 12VDC.
The lifespan of the IR LED is 20,000 hours.
