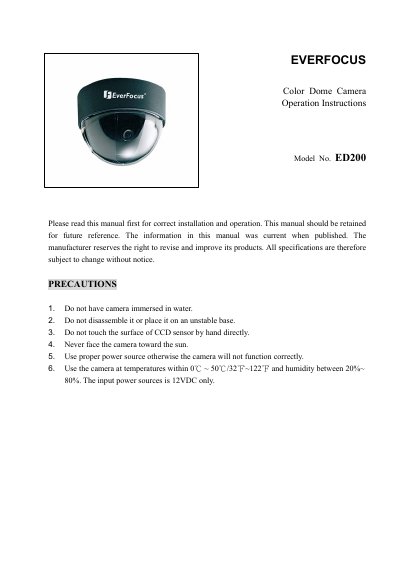

This document provides operation instructions for the EVERFOCUS Color Dome Camera Model No. ED200, including correct installation and operation methods. The camera features a high sensitivity CCD sensor, advanced digital signal processing circuitry, and functions such as auto exposure, auto gain control, and auto white balance.
The EverFocus ED200 is a compact, full-functioned color dome camera designed for ceiling or wall mounting. It utilizes a high-sensitivity 1/3" SONY Super HAD interline transfer CCD sensor with built-in DSP for advanced digital signal processing. Key features include Auto Electronic Shutter, Automatic Gain Control, and Auto White Balance functions to ensure high image quality in various lighting conditions.
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Video Format | NTSC or PAL |
| Horizontal Resolution | 380 TV Lines |
| Sensitivity | 0.3 Lux/F=1.2 |
| Power Source | 12VDC only |
| Operating Temperature | 0°C ~ 50°C / 32°F~122°F |
| Dimensions | 108 mm (O.D.) x 80 mm (H) |
The camera requires a regulated DC +12V power source.
Yes, it can be mounted on the ceiling or on the wall easily.
Yes, the ED200 features an Auto White Balance function.
