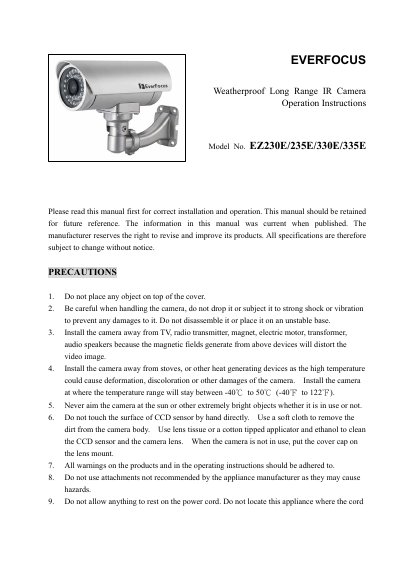

EverFocus EZ230E/235E/330E/335E Weatherproof Long Range IR Camera Operation Instructions
This manual provides operation instructions for the EverFocus EZ230E/235E/330E/335E series, which are true day/night, weather-proof, long-range IR color cameras. Designed with a 1/3" SONY HAD color CCD, these cameras are ideal for outdoor applications such as parking lots, gas stations, and shopping malls. The series features electronic shutter and AGC functions to handle varying light levels, with low light sensitivity ranging from 0.3 Lux to 0.4 Lux depending on the model.
Read onlineEverFocus 230E specifications
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Horizontal Resolution | 380 TVL (EZ230E/EZ330E) / 520 TVL (EZ235E/EZ335E) |
| Weatherproof Rating | IP66 |
| IR LED Lifespan | 20,000 hours |
| Operating Temperature | -40°C to +50°C |
| IR Distance | 30M (EZ230E/EZ330E) / 50M (EZ235E/EZ335E) |
Source: EverFocus EZ230E/235E/330E/335E Weatherproof Long Range IR Camera Operation Instructions
All EverFocus 230E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the low light sensitivity of the EZ230E and EZ235E models?
The EZ230E and EZ235E models have a low light sensitivity of 0.3 Lux/F=1.2 (AGC ON).
From: EverFocus EZ230E/235E/330E/335E Weatherproof Long Range IR Camera Operation Instructions
What is the low light sensitivity of the EZ330E and EZ335E models?
The EZ330E and EZ335E models have a low light sensitivity of 0.4 Lux/F=1.2 (AGC ON).
From: EverFocus EZ230E/235E/330E/335E Weatherproof Long Range IR Camera Operation Instructions
What is the operating temperature range?
The camera operates at temperatures between -10°C and 50°C (14°F~122°F).
What is the maximum power consumption?
The maximum power consumption is 3W when powered by 12VDC.
