EDA 997 A is a serial data distributor giving back serial data on 8 outputs at the same time allowing perfect configurations. The RS-485 transmission takes place on all 8 outputs at the same time. The input receiving mode may be selected as RS-485 or RS-232.

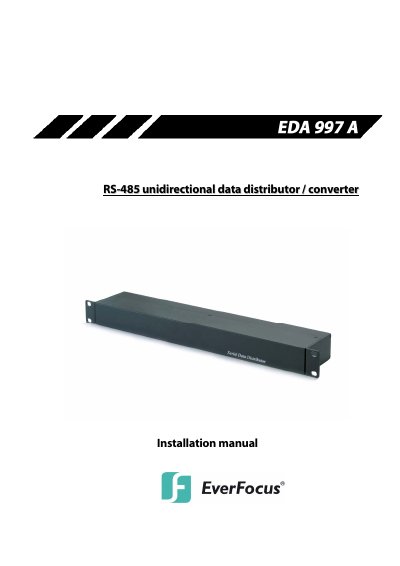

The document is an installation manual for the EverFocus EDA997A, a serial data distributor designed to provide back-to-back serial data on eight simultaneous outputs. It allows for perfect configurations by distributing RS-485 transmission across all outputs while supporting input receiving modes of either RS-485 or RS-232.
| Input option | 1x RS-232, 2x RS-485 |
|---|---|
| Output | 8 x RS-485 |
| Max connection range | 1200 meters |
| Power source | 12VDC/4W max |
| Dimensions | 482 (W) x 44 (H) x 99 (D) mm |
The input receiving mode may be selected as RS-485 or RS-232.
The device supports a maximum connection range of up to 1200 meters using Twisted Pair cable.
