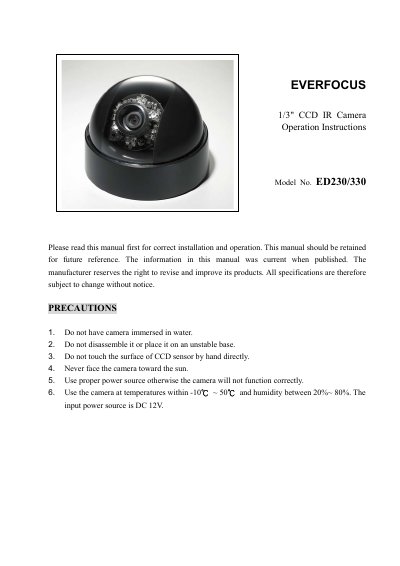

This document provides operation instructions for EVERFOCUS ED230/330 CCD IR Camera, including installation precautions and product features and characteristics.
This manual provides operation instructions for the EverFocus ED230 and ED330 series of compact, full-functioned 1/3" CCD IR dome cameras. These cameras feature a high-sensitive color interline transfer CCD sensor with built-in long-life LEDs and support functions such as Auto Electronic Shutter, Automatic Gain Control, and Auto White Balance.
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Video Format | NTSC or PAL |
| Horizontal Resolution (ED230) | 380 TV Lines |
| Horizontal Resolution (ED330) | 480 TV Lines |
| Power Source | 12VDC |
| Operating Temperature | -10°C ~ 50°C |
| IR Distance | 10-15 M / 33-49 feet |
The camera should be used at temperatures between -10°C and 50°C.
Yes, these dome cameras can be mounted either on the ceiling or on the wall.
The camera automatically switches to a black and white image.
