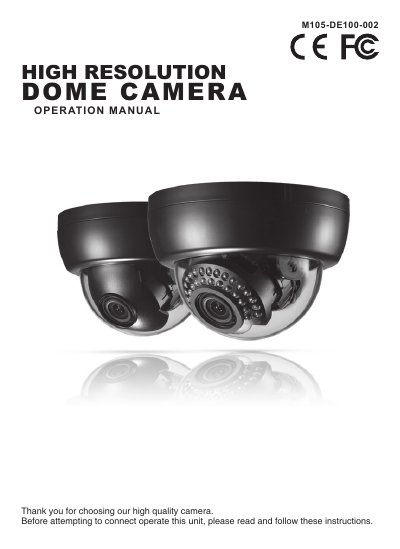

This document is the operation manual for the high resolution dome camera M105-DE100-002. It includes cautions, features, package contents, overview and function, installation instructions, connection guide, dimensions, specifications, and OSD menu structure.
This document is the operation manual for the HIGH RESOLUTION M105-DE100-002 high resolution dome camera. It provides instructions on cautions, features, and package contents, along with detailed steps for installation and connection.
| Image Device | 1/3" 960H SONY EXview HAD CCD II |
|---|---|
| H.Resolution | 700TV Lines |
| Power Supply | DC12V / AC24V Dual Voltage |
| Operating Temperature | -10℃ ~ +50℃ |
| Weight | Approx. 343g |
| Dimensions | 136.4(Φ) x 95.3(mm) |
A regulated DC12V 1A power supply is recommended for the best picture and stable operation.
No, users should not attempt to disassemble the camera; servicing should be referred to the dealer.
The camera supports English, Japanese, German, French, Russian, Portuguese, Spanish, and Chinese.
