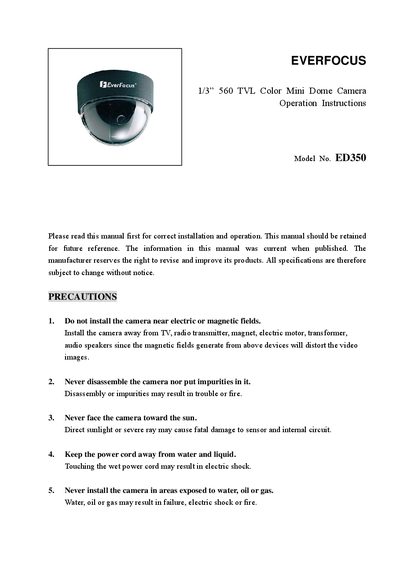

EverFocus ED350 Mini Dome Camera Operation Instructions

This operation manual introduces the correct installation and operation methods of EVERFOCUS 1/3” 560 TVL Color Mini Dome Camera

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 10
File format: PDF
File size: 243 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: BB598CD600B36D3E54CCCD8294BC9C68
PDF: EverFocus ED350 Mini Dome Camera Operation Instructions PDF

About this manual

This manual provides operation instructions for the EverFocus ED350, a compact color mini dome camera featuring a 1/3" Sony Super HAD CCD sensor. The device supports NTSC or PAL video formats and includes features such as auto iris, electronic shutter control, and various image adjustments like AGC and BLC.

What's inside

Precautions
Cleaning
Package Contents
Specifications
Major Parts Name & Functions
Lens Adjustment
Adjustments (IRIS, Flickerless, etc.)
Installation

Specifications

Pickup Device	1/3" SONY Super HAD CCD
Horizontal Resolution	560 TVL
Sensitivity	0.5Lux/F=1.2
Electronic Shutter Range	1/50(1/60)~1/100,000
Power Source	12VDC/24VAC
Operating Temperature	0°C ~ 40°C

Frequently asked questions

What is the power source requirement for the ED350?

The camera requires a regulated power source of either 12VDC or 24VAC.

What are the operating temperature limits?

The camera should be operated at temperatures between 0°C and 40°C (32°F to 104°F).
