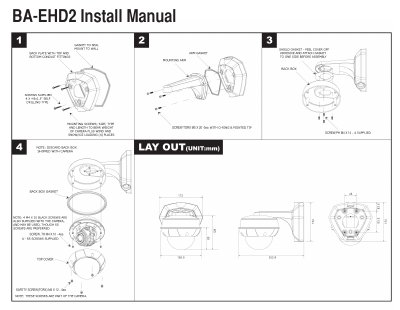

This document serves as an installation manual for the EverFocus BA-EHD2 camera. It details the assembly of the mounting arm and back box, specifically instructing users to peel off the adhesive cover from the shield gasket before attaching it to one side. The guide also notes that the back box shipped with the camera should be discarded after installation.
| Mounting Screw (Weight Bearing) | PH M65 X 20 - 3ea with O-ring & pointed tip |
|---|---|
| Mounting Screw (Supplied) | PH M4 X 14 - 4 supplied |
| Safety Screw | TORX M4 X 12 - 2ea |
| Alternative Mounting Screw | TH M4 X 10 - 4ea |
No, the back box shipped with the camera should be discarded.
Peel the cover off the adhesive and attach the gasket to one side before assembly.
