About this manual

This document provides installation instructions for the EverFocus BA-EHDS3 camera mounting system. It details the components required, such as the gasket, back plate, and weather shield, and specifies the hardware needed for secure wall mounting.

What's inside

Mount to Wall
Gasket to Seal
Back Plate Assembly
Mounting Screws
Cover Screw
Mounting Arm
Weather/Sun Shield

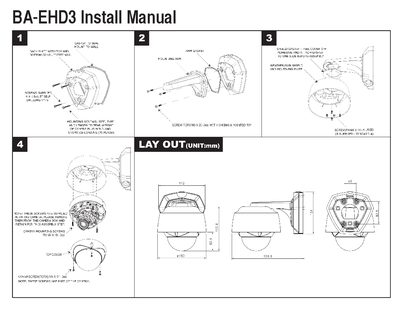

Assembly Layout

Specifications

Mounting Screw Size	4X #8x1.5" Self Drilling Type
Cover Screw Size	TORX M4 X 17
Arm Screw Size	TORX M5 X 20
Shield Screw Size	PH M4 X 14

Frequently asked questions

What type of screws are required to mount the camera to the wall?

You must use four 4x #8x1.5" self-drilling type mounting screws.

What is the minimum weight capacity required for the mounting screws?

The screws must bear the weight of the camera plus wind and snow/ice loading.

How many cover screws are included with the camera?

There are 32 cover screws included, specified as Torx M4 x 17.
