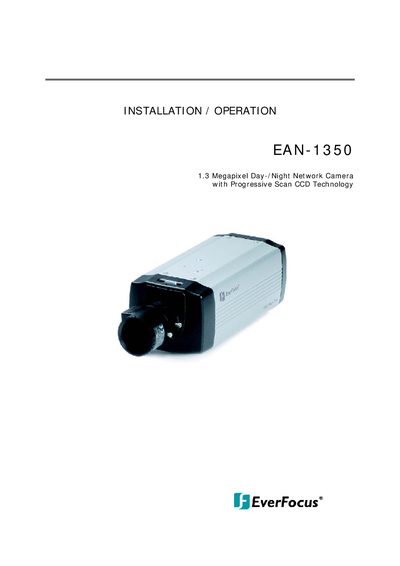

This document provides instructions for the installation and operation of the EAN-1350 1.3 Megapixel Day-/Night Network Camera with Progressive Scan CCD Technology. The camera features high resolution and night vision capabilities. The document also includes safety warnings regarding the installation environment and maintenance precautions.
This manual provides comprehensive installation and operation instructions for the EverFocus EAN-1350, a 1.3 Megapixel Day/Night Network Camera featuring Progressive Scan CCD technology. It covers hardware installation, including backpanel connectors, lens mounting, and network wiring, as well as software configuration via the web interface.
| Sensor Type | 1/3 progressive scan CCD |
|---|---|
| Effective Pixels | 1280x960 |
| Lens Mount | CS-mount/C-mount DC-drive |
| Minimum Illumination | 1 Lux / F 1,2 color mode |
| Video Compression | MPEG4 / JPEG |
| Power Supply | 12V DC/ 24V AC, 8W max. or PoE 802.3af |
| Dimensions | 166 mm(L) x 80mm(W) x 81mm(H) |
The minimum illumination is 1 Lux at F 1.2 in color mode.
Yes, the camera supports PoE 802.3af for powering the device.
The camera supports dual streaming with MPEG4 and JPEG compression.
