EverFocus BA-EHD3 Installation Manual

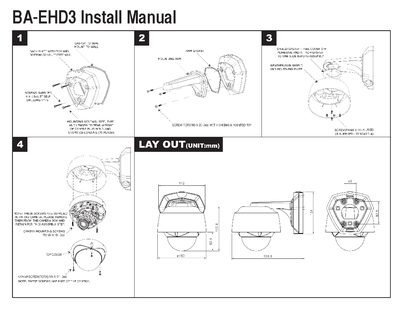

EverFocus BA-EHD3 Installation Manual - cover page
Brand
EverFocus
Category
Monitoring Equipment
Document type
Installation Guide
Language
English
Pages
1
File format
PDF
File size
1.1 MB
Published
09 July, 2012
Updated
29 September, 2023
Model
BA-EHD3
MD5 checksum
D98EC04424C405138D3CF0F8ADBF2DA2

About this manual

The document outlines the steps to assemble the mounting hardware for an EverFocus camera. It details how to attach a gasket to seal the mount to the wall using supplied self-drilling screws. The text specifies that these screws must be removed from the camera box beforehand as they are required for this assembly step.

What's inside

  • Mounting Screws
  • Wall Mount Assembly
  • Weather Shield Attachment
  • Cover Screw Specifications

Frequently asked questions

What type of screws are required to mount the camera?

The installation requires four #8x1.5-inch self-drilling mounting screws.

What is the minimum weight capacity for the mounting screws?

The screws must bear the weight of the camera plus wind and snow/ice loading.
