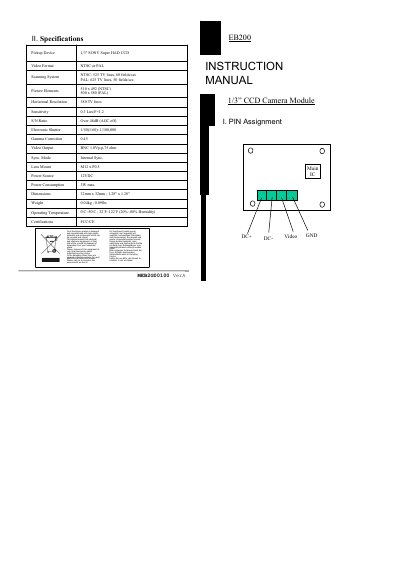

EB200 INSTRUCTION MANUAL II. Specifications I. PIN Assignment MEB2G00100 VerA Main IC DC+ GND Video DC- Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product. Please, help us to conserve the environment we live in!
This document provides technical specifications for the EverFocus EB200, a compact 1/3-inch SONY Super HAD CCD camera module. The device supports both NTSC and PAL video formats with a horizontal resolution of 380 TV lines and an electronic shutter range from 1/50 to 1/100,000 seconds.
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Video Format | NTSC or PAL |
| Horizontal Resolution | 380 TV lines |
| Sensitivity | 0.3 Lux/F=1.2 |
| Video Output | BNC 1.0Vp-p,75 ohm |
| Lens Mount | M12x POS |
| Power Source | 12vDC |
| Dimensions | 32mm x 32mm |
The device requires a 12vDC power source.
The module weighs 0.04kg or 0.09lbs.
The unit consumes a maximum of 3W.
