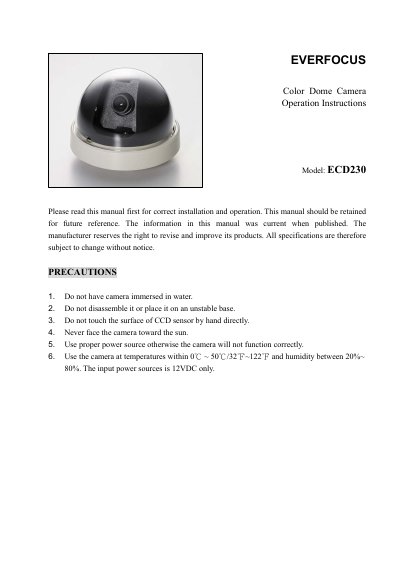

This document introduces the operation method of EVERFOCUS ECD230 color dome camera, including precautions before use, product features, etc.
This manual provides operation instructions for the EverFocus ECD230 Color Dome Camera, a compact CCD security camera. It details installation procedures for ceiling, wall, and floor mounting, as well as connection steps for video and power sources. The device features a 1/3" SONY Super HAD CCD sensor and supports both NTSC and PAL video formats.
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Video Format | NTSC or PAL |
| Horizontal Resolution | 380 TV Lines (Standard) / 480 TV Lines (High) |
| Power Source | 12VDC |
| Dimensions | 87 mm (O.D.) x 58 mm (H) |
The camera should be used at temperatures between 0°C and 50°C with humidity between 20% and 80%.
The camera requires a 12VDC regulated power source.
The system is available for NTSC or PAL formats.
