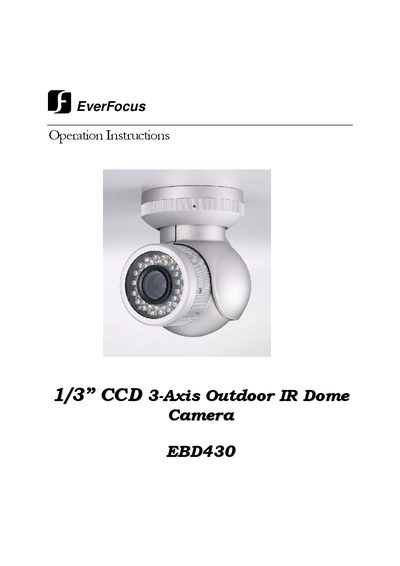

This is an operation instruction for EverFocus 1/3”CCD 3-Axis Outdoor IR Dome Camera EEBD D443300
The EverFocus EBD430 is an outdoor surveillance camera equipped with a 1/3" SONY Super HAD CCD II sensor. It features a vari-focal lens, true day/night functionality with a removable IR cut filter, and intelligent variable-frequency IR control for up to 30 meters of illumination in complete darkness.
Designed for flexible installation, the camera offers 3-axis rotation and external adjustment rings for zoom and focus. It is built to withstand harsh environments with an IP66 weatherproof rating, a built-in heater, and a vandal-resistant design.
| Pickup Device | 1/3" SONY Super HAD CCD II |
|---|---|
| Horizontal Resolution | 520 TV Lines |
| IR Range | 30 meters / 98 ft. |
| Weatherproof Rating | IP66 |
| Operating Temperature | -40°C to +50°C |
| IR Wavelength | 850nm |
Adjust the outer ring to the right or left for focus, and the inner ring to the right or left to zoom in or out.
The high intensity IR LED has a lifespan of up to 20,000 hours.
