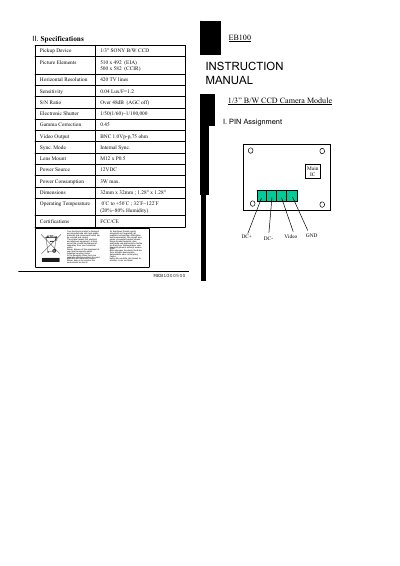

This is an instruction manual for a 1/3-inch monochrome CCD camera module. It mainly introduces the features, specifications, and usage methods of the product.
This document serves as the instruction manual and specification sheet for the EverFocus EB100, a 1/3" B/W CCD Camera Module. It provides detailed technical specifications including sensor type, resolution, sensitivity, and video output parameters.
The manual also includes a pin assignment diagram for the module's main interface, listing connections for DC+, Video, and GND. Operating conditions such as temperature range and power consumption are specified, along with certification marks.
| Pickup Device | 1/3" SONY B/W CCD |
|---|---|
| Picture Elements | 510x 492 (BIA) |
| Horizontal Resolution | 420 TV lines |
| Sensitivity | 0.04 Lux/F=1.2 |
| S/N Ratio | Over 48dB (AGC off) |
| Electronic Shutter | 1/50(1/60)~1/100,000 |
| Video Output | BNC 1.0Vp-p,75 ohm |
| Power Source | 12VDC |
| Power Consumption | 3W max. |
| Dimensions | 32mm x 32mm |
| Operating Temperature | 0°C to +50°C |
The lens mount is M12 x PO.5.
The gamma correction is set to 0.45.
The pins are Main, DC+, Video, and GND.
