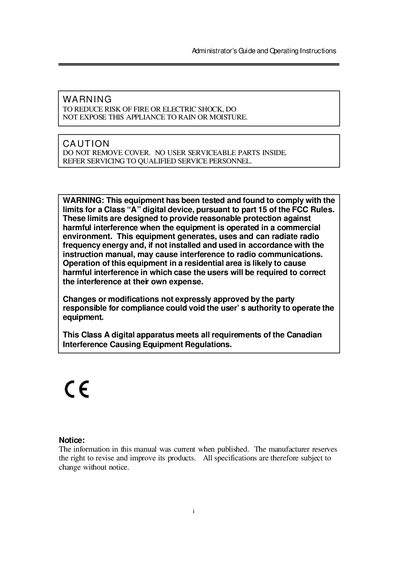

This document is an administrator's guide and operating instructions. It warns against exposing the appliance to rain or moisture, removing the cover, or operating the equipment in a residential area. The equipment complies with FCC rules and Canadian interference regulations.
This manual serves as an Administrator's Guide and Operating Instructions for the EverFocus PowerPlex EDR1600 digital video recorder. It details the features of the device, including its ability to connect up to 16 cameras and perform real triplex operation for simultaneous recording, live viewing, and playback. The guide explains the technical overview, including video input/output, processing, storage, and motion detection capabilities.
| Camera Connections | Up to 16 color or B/W cameras |
|---|---|
| Internal Hard Disks | Up to two internal Hard Disks |
| External Hard Disk Arrays | Up to two external Hard Disk Arrays (Max. 8 Hard Disks per set) |
| Recording Rate (NTSC) | Up to 60 fps |
| Playback Rate (NTSC) | Up to 30 fps |
| Display Resolution (NTSC) | 640x480 |
| Display Resolution (PAL) | 800x600 |
| Operating Temperature | 0°C ~ +45°C |
| Operating Humidity | Below 90% |
| Input Power Source | 115V AC or 230V AC, 50Hz — 60Hz |
The device supports either NTSC/EIA or PAL/CCIR standard.
Yes, real triplex operation allows simultaneous recording, live viewing, and playback.
The recorder can connect up to 16 color or B/W cameras.
No, it features a graphics user interface with a built-in realtime kernel, so Windows OS is not required.
