EverFocus EBC890 Flex Series Fingerprint Single Door Controller User Manual

Q: What is the operating temperature range for this product?

The product is designed to operate in the temperature range of 20°F ~143°F.

Q: Can I service the product myself?

No, do not attempt to service the product by yourself; contact technical support for any service or repair needs.

Q: What is the maximum current draw for the door control relay?

The maximum current draw for the door control relay is 5A.

This file is the instruction manual of EverAccess EBC890, which introduces the features and usage methods of the product.

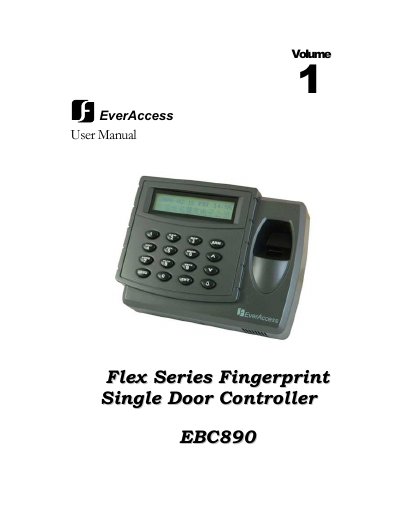

EverFocus EBC890 Flex Series Fingerprint Single Door Controller User Manual - cover page

Brand: EverFocus
Document type: User Manual
Language: English
Pages: 64
File format: PDF
File size: 1.6 MB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 4EC632D52B84E32D2C7E24522090BEAE
PDF: EverFocus EBC890 Flex Series Fingerprint Single Door Controller User Manual PDF

About this manual

The document is a user guide for the EverAccess EBC890, a single-door fingerprint access control system manufactured by EverFocus Electronics Corporation. It covers safety warnings, hardware installation, wiring connections to locks and sensors, computer integration via RS232/RS485/TCP/IP, and power supply setup.

What's inside

Product Overview
Installation Overview
Hardware Installation
Connecting Fingerprint Controller and Computer
Controller Functionality and Configuration
Fingerprint Capture
Alarm Setting

Specifications

Supply voltage	DC 10~15V
Max current draw for door control relay	5A
Dimension	179L x 137W x 48H (mm)
Fingerprint verification time 1:1	< 2 seconds
Fingerprint verification time 1:N	<3 seconds

Frequently asked questions

What is the operating temperature range for this product?
