BZT52-C2V4S through BZT52-C39S are 2.4 to 39 volt surface mount silicon diodes. They feature 200 milliwatts of power dissipation and are ideally suited for automated assembly processes.

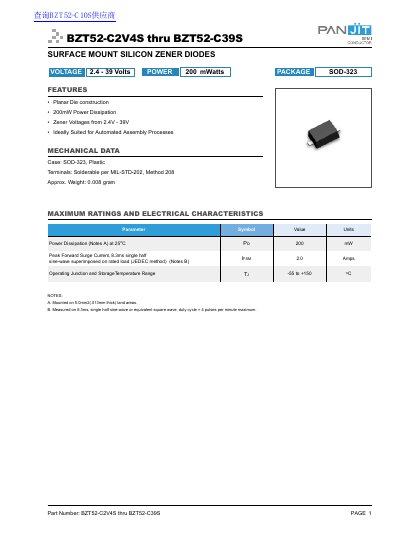

This document is a datasheet for the PanjIt BZT52-C2V4S through BZT52-C39S series of surface mount silicon zener diodes. The devices feature a planar die construction and are designed for automated assembly processes. They are housed in a plastic SOD-323 package with solderable terminals compliant with MIL-STD-202 standards.
| Voltage Range | 2.4 - 39 Volts |
|---|---|
| Power Dissipation | 200 mWatts |
| Package Type | SOD-323, Plastic |
| Weight | 0.008 gram |
| Terminal Compliance | Solderable per MIL-STD-202, Method 208 |
| Zener Voltage Tolerance | ±5% |
The typical power dissipation is 200 mWatts.
The package type is SOD-323 with plastic terminals.
Yes, the terminals are solderable per MIL-STD-202, Method 208.
