PHILIPS CBT6810 10-bit bus switch with precharged outputs Schottky undershoot protection for live insertion handbook

The CBT6810 is a 10-bit bus switch with precharged outputs and Schottky undershoot protection for live insertion from Philips Semiconductors. The features of this switch include a 5-ohm switch connection between port A and port B, TTL-compatible input and output levels, undershoot protection to prevent shoot-through level changes, and bias voltage pre-charging the outputs to minimize signal distortion during live insertion.

Brand
Philips
File format
PDF
Published
06 July, 2012
Updated
01 October, 2023
MD5 checksum
A0B31C0C7C78E854D66BC53CF842AD10
PDF

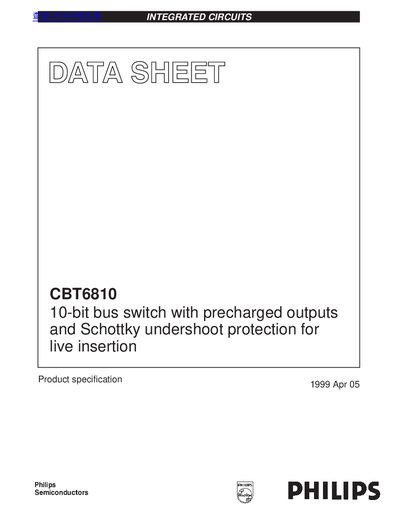

PHILIPS CBT6810 10-bit bus switch with precharged outputs Schottky undershoot protection for live insertion handbook PDF
