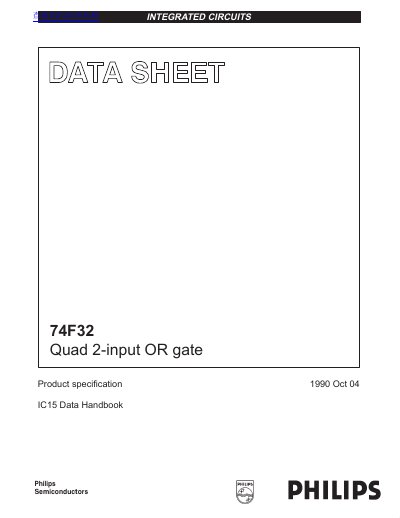

The document is a product specification for the Philips Semiconductors 74F32 Quad 2-input OR gate, describing the features and characteristics of the product.
The document is a technical specification sheet for the Philips 74F32, a quad 2-input OR gate. It details the device's logic function, pin configuration, and ordering information for commercial and industrial temperature ranges.
Key sections include absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics with typical values at 5V supply, and detailed mechanical dimensions for plastic DIP and SO packages.
| Operating Temperature Range (Industrial) | -40°C to +85°C |
|---|---|
| Low-Level Output Current | 20mA |
Yes, the device is available in an industrial temperature range from -40°C to +85°C.
The absolute maximum rating for the supply voltage (Voc) is +7.0 V.
Each gate has two data inputs, labeled Dna and Dnb.
The typical total propagation delay is 4.1 ns when the supply voltage is 5 V.
