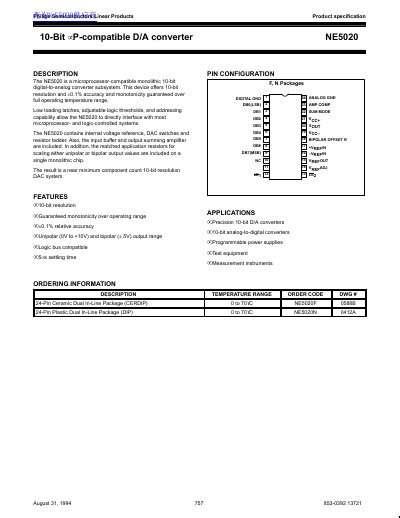

NE5020 is a microprocessor-compatible monolithic 10-bit digital-to-analog converter subsystem. This device offers 10-bit resolution and ±0.1% accuracy and monotonicity guaranteed over full operating temperature range. Low loading latches, adjustable logic thresholds, and addressing capability allow the NE5020 to directly interface with most microprocessor- and logic-controlled systems. The NE5020 contains internal voltage reference, DAC switches and resistor ladder. Also, the input buffer and output summing amplifier are included. In addition, the matched application resistors for scaling either unipolar or bipolar output values are included on a single monolithic chip. The result is a near minimum component count 10-bit resolution DAC system.
The NE5020 is a 10-bit uP-compatible D/A converter designed to directly interface with most microprocessor- and logic-controlled systems. It features guaranteed monotonicity over the operating range, low loading latches, adjustable logic thresholds, and addressing capability.
The device contains internal voltage references, DAC switches, resistor ladders, input buffers, output summing amplifiers, and matched application resistors for scaling unipolar or bipolar outputs on a single monolithic chip. This results in a near minimum component count 10-bit resolution D/A system.
| Resolution | 10 Bits |
|---|---|
| Monotonicity | Guaranteed over operating range |
| Relative Accuracy | 0.1% |
| Unipolar Output Range | 0V to +10V |
| Bipolar Output Range | +5V to -5V |
| Settling Time (Full Scale) | 5 us |
| Propagation Delay (LSB change) | 150 ns |
The operating temperature range is 0 to +70 °C.
Yes, the device contains an internal voltage reference along with DAC switches and resistor ladders.
