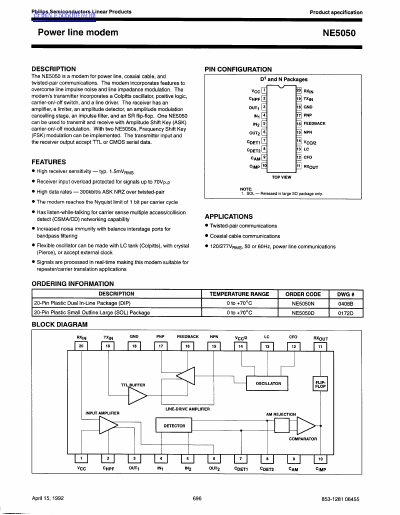

The NE5050 is a modem designed for power line, coaxial cable, and twisted-pair communications. It incorporates features to overcome line impulse noise and line impedance modulation. The modem's transmitter includes a Colpitts oscillator, a carrier-on/-off switch, and a line driver, while the receiver features an amplifier, limiter, amplitude detector, and impulse filter. It supports Amplitude Shift Key (ASK) and Frequency Shift Key (FSK) modulation.
| Supply voltage | 10 to 16 V |
|---|---|
| Ambient temperature range | 0 to +70 °C |
| Junction temperature range | 55 to +150 °C |
| Maximum power dissipation | 700 mW |
| TX data rate | 300k bit/s |
| RX data rate | 300k bit/s |
| RX input sensitivity | 3.5 mVrms |
| RX input overload protection | 70 Vp-p |
The modem supports power line, coaxial cable, and twisted-pair communications.
The maximum power dissipation is 700 mW.
